B-HC Feeders
Eriez High Capacity Feeders
Eriez’ B-HC High Capacity Feeders effectively meter materials for high-demand use. The B-HC line offers the widest capacity range in the industry. Capable of delivering controlled amounts from just a few kilograms to 1,089 metric tonnes (1,200 tons) of bulk material per hour.*
Four models give you the flexibility you need, with the 65, 75, 100, and 120 models.
Industry-Leading Performance
Built for continuous use, each B-HC Feeder is made to handle bulk flows time and time again. With no wear, rotating, or sliding parts, maintenance is minimal. Help reduce downtime with equipment that’s always on the job.
The electromagnetic coil and rare earth armature are a proven design that requires minimal maintenance and extends the life of the feeder. The drive assembly is enclosed, remaining dust and moisture resistant. This extends coil life and allows for continuous use.
Space-Saving Convenience

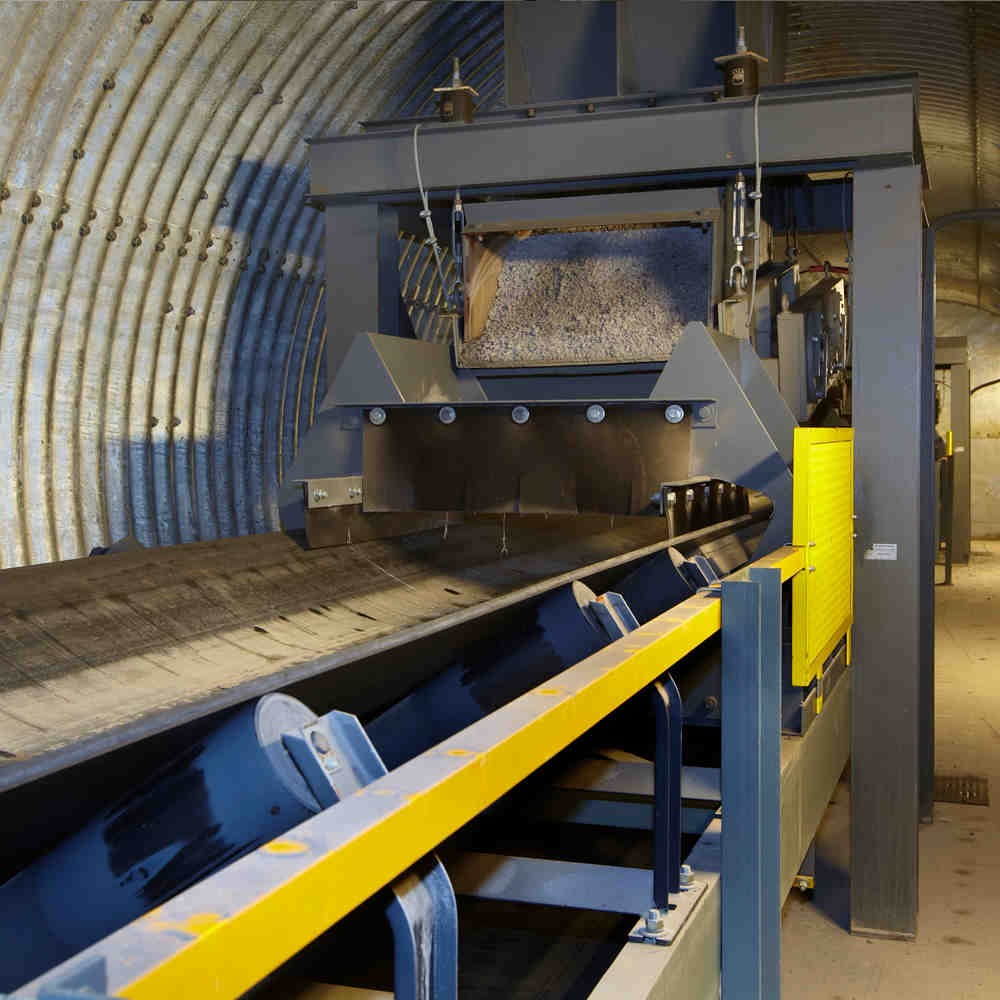

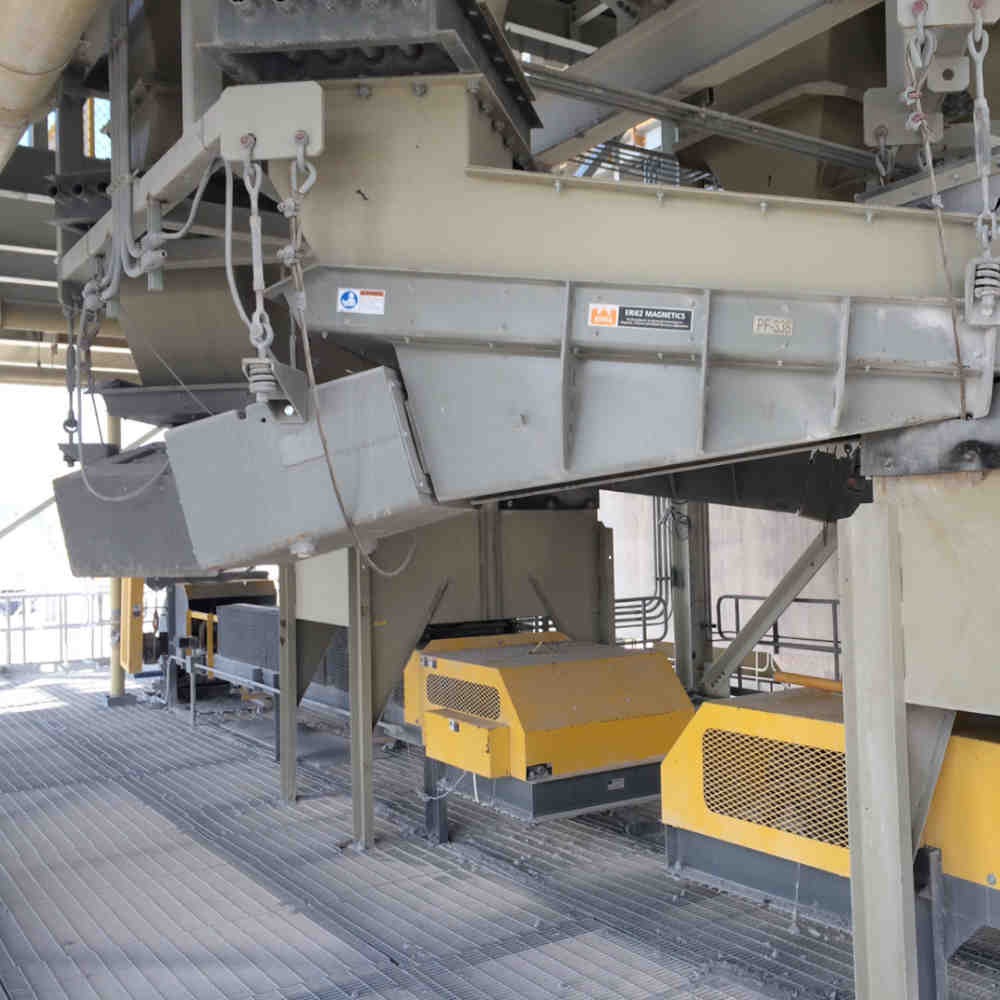

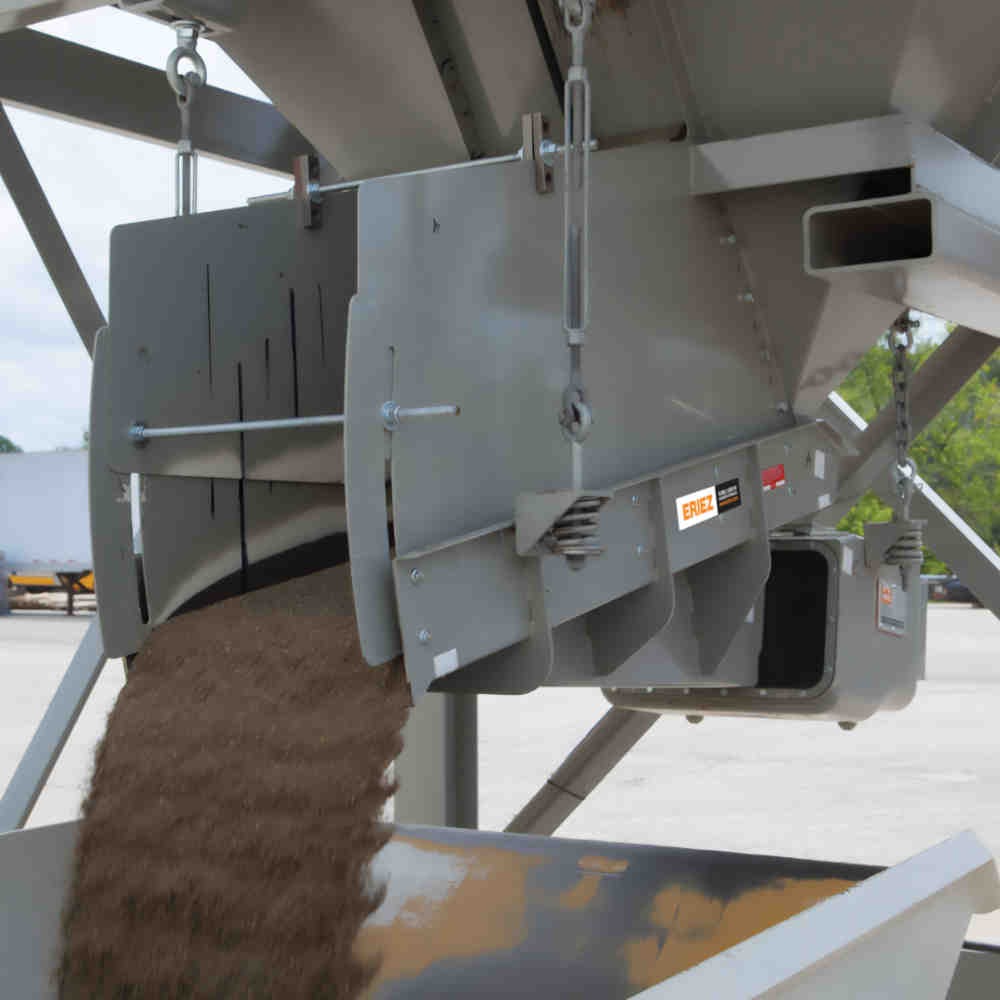

With a specialised low-profile design, each model of B-HC Feeders has a smaller physical footprint. Ideal for head load applications below hoppers, it meters material to belt conveyors, screens, crushers and elevators. While the throughput increases, valuable spaces are saved — a fit for virtually every environment.
Features
- High-capacity electromagnetic drive system
- Designed for continuous, high-throughput applications
- Standard and custom engineered tray designs for your specific application
- Base or suspension mounting options
- Heavy-duty structural design for reinforced durability
- Optional abrasion resistant steel, chrome carbide stainless steel or UHMW liners
Applications
- Bulk Material Handling
- Aggregates
- Cement
- Heavy Industrial Operations
- Mining and Minerals Processing
Variety of Trays
Eriez offers a wide variety of tray and trough sizes and types for specific applications. Flat, open trays are common but tubular trays, and screening trays are available. Other custom options offered include inlets, outlets, tray covers,
cleaning ports.
Typical construction material consists of mild or stainless steel. For harsh applications such as glass cullet, limestone or other abrasive products, replaceable tray liners such as UHMW, stainless steel, AR steel, chrome carbide or other materials can be provided.
Superior Drive Design
The Eriez Full Wave drive design is powered by alternately opposing and attracting magnetic forces. This rapid, automatic switching causes a vibration, which provides a simple yet powerful solution to difficult material feeding applications. Traditionally, competitors have used an inefficient attract-release design, in which an electromagnet pulls the tray in one direction and the feeder springs cause the tray to snap back in the opposite direction.
The Full Wave drive has the effect of progressively closing the magnetising circuit through the electromagnet core, providing a progressively increasing magnetising force upon the permanent magnet. The demagnetising force is very minor, since the action described also has the effect of progressively opening the demagnetising circuit. On the opposite side of the sine wave the polarities of the electromagnet are reversed. The armature is driven in the opposite direction, and again there is a net magnetising force on the permanent magnet. There is always a predominant magnetising force impressed upon the permanent magnet that prevents it from ever losing its strength.
Since the amplitude of vibration depends directly upon the forces applied at the poles, and since these forces depend directly upon the applied AC voltage, simple variation of the AC voltage from zero to maximum results in similar amplitude variation from zero to maximum. The basic simplicity of a drive powered by alternately opposing and attracting magnetic forces assures low maintenance. There are no sliding or rotating parts. The positive driving force of Eriez units provides stability, control,
and unexcelled accuracy.
Feed Materials
- Aluminium
- Bronze Chips
- Glass Batch
- Cement Clinker
- Asphalt
- Aggregates
- Borax
- Copper Ore
- Ash
- Granite
- Coal
- Bauxite
- Coke
- Quartz
- Iron Ore

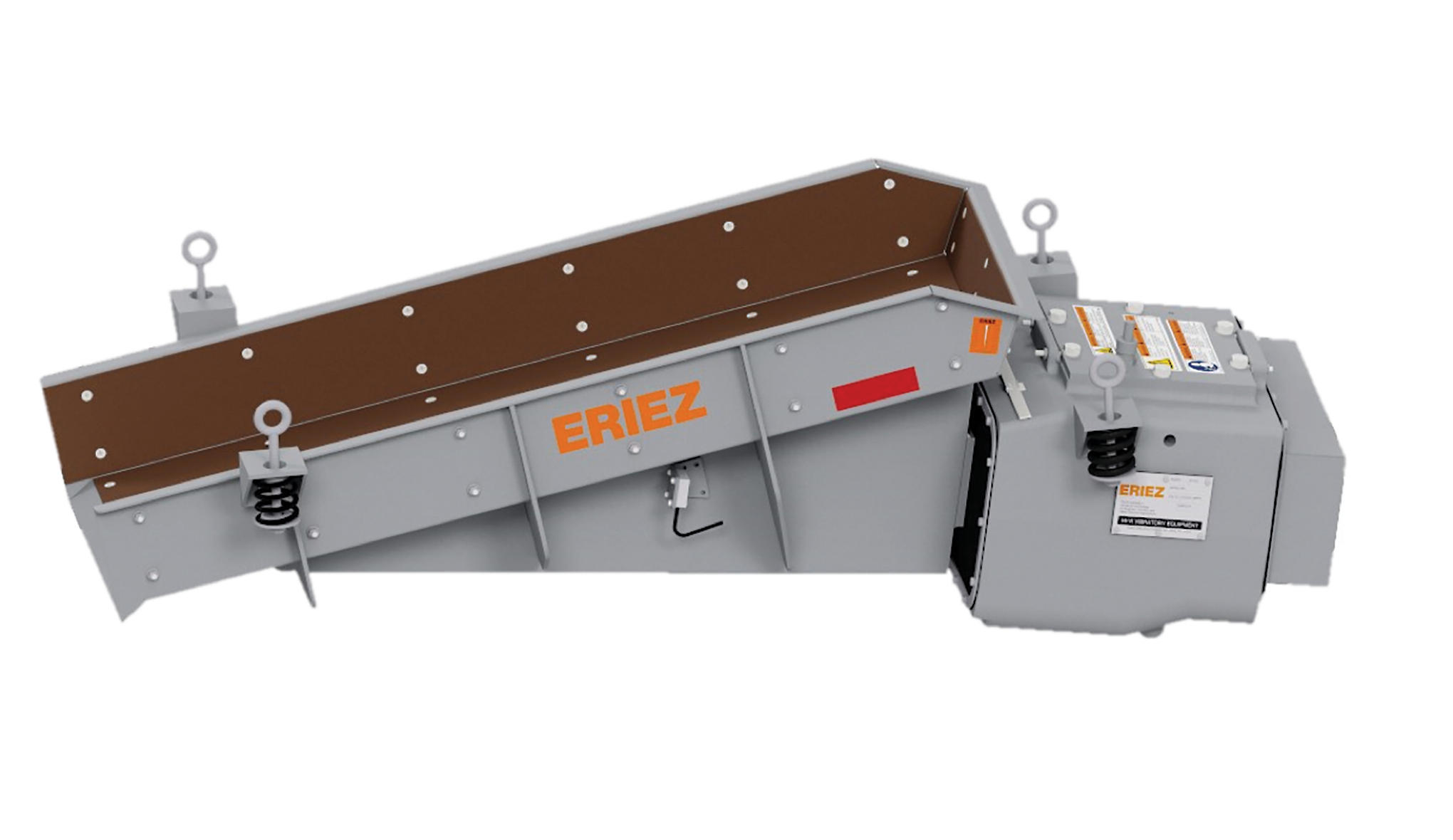

65B-HC High Capacity Vibratory Feeder
Feed up to 272 metric tonnes (300 tons) per hour at 60 Hz* and 227 metric tonnes (250 tons) per hour at 50 Hz*
Ideal for installations requiring dependable feeding in a confined space, this feeder offers robust performance in a compact
footprint. Designed for primary and secondary feeding systems, it is ideally suited for transfer points.
The 65B-HC delivers reliability and control in demanding environments where space and performance both matter.

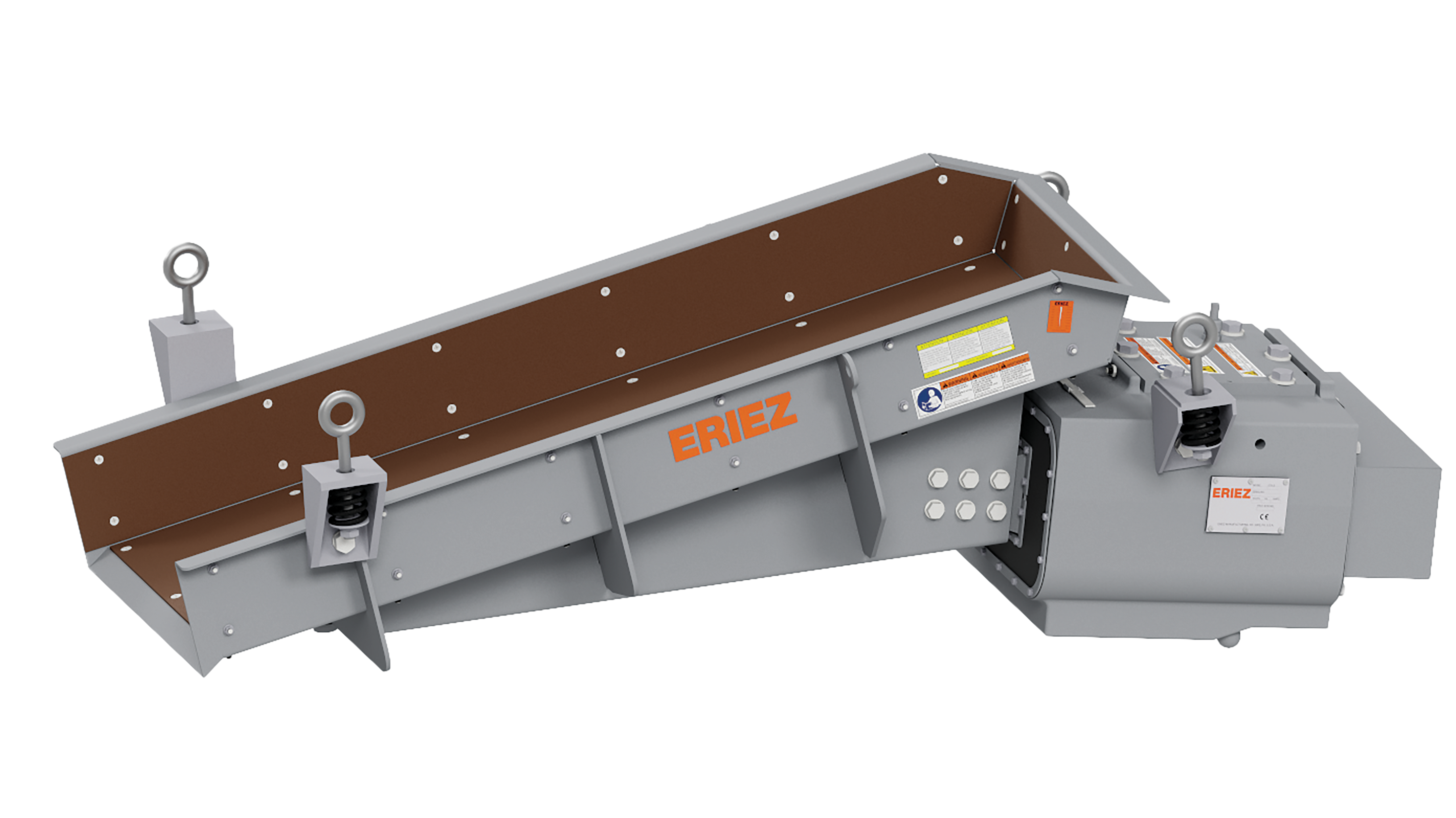

75B-HC High Capacity Vibratory Feeder
Feed up to 481 metric tonnes (530 tons) per hour at 60 Hz* and 399 metric tonnes (440 tons) per hour at 50 Hz*
Bridge the gap between compact and large-capacity feeders, for the balanced power needed in high-volume applications. Perfect for a primary or secondary checkpoint in bulk material handling, it increases throughput with the same rugged construction found throughout the B-HC line.
The 75B-HC is built for dependable performance where productivity and durability are essential.

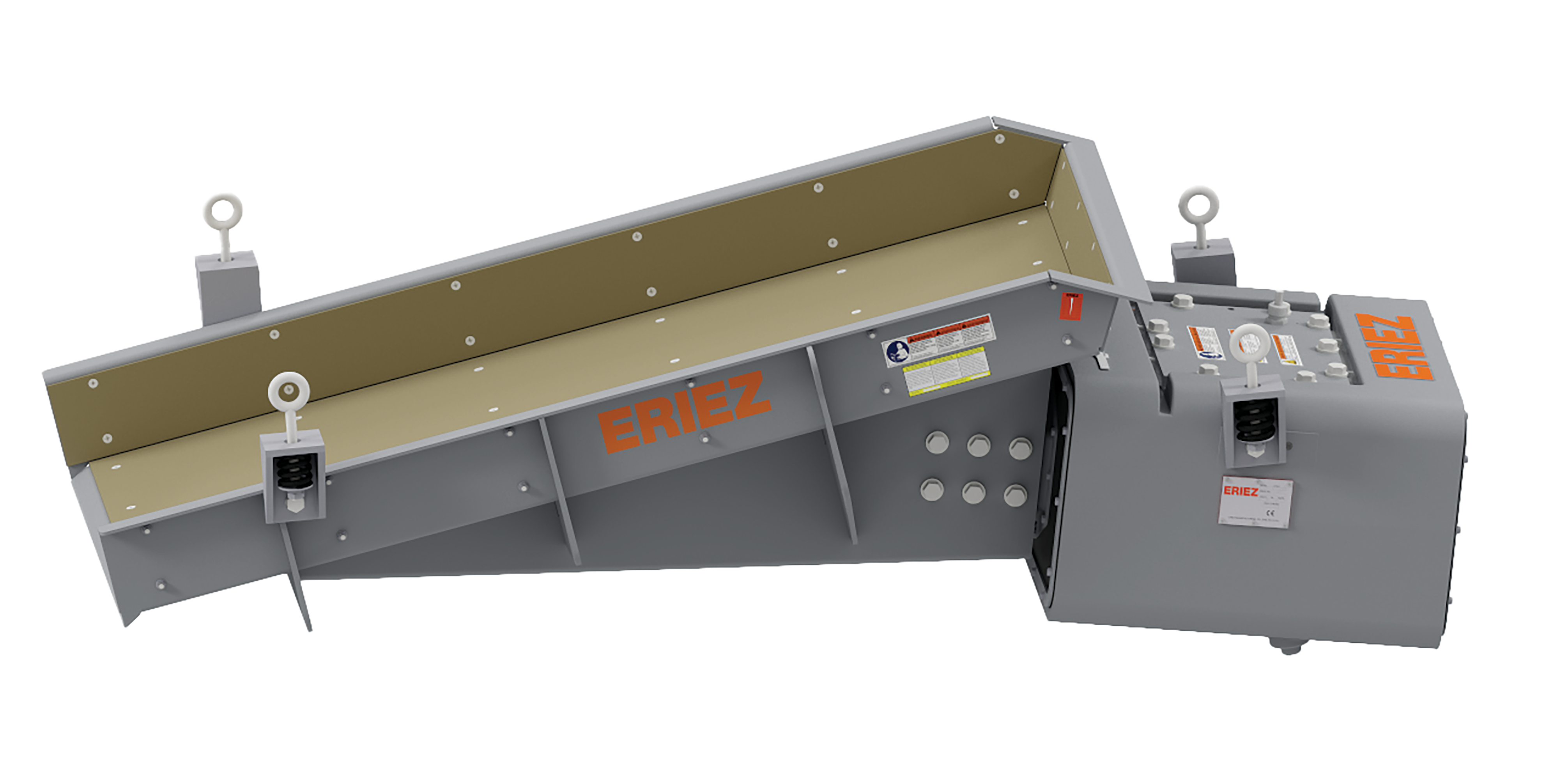

100B-HC High Capacity Vibratory Feeder
Feed up to 816 metric tonnes (900 tons) per hour at 60 Hz* and 680 metric tonnes (750 tons) per hour at 50 Hz*
Engineered for high-volume throughput, the 100B-HC is designed for large-scale operations. Bulk material transfer systems that demand consistent, high-capacity material flow under severe operating conditions can trust this feeder.
The 100B-HC is built for performance and longevity, ensuring reliable operation even under the most demanding conditions.

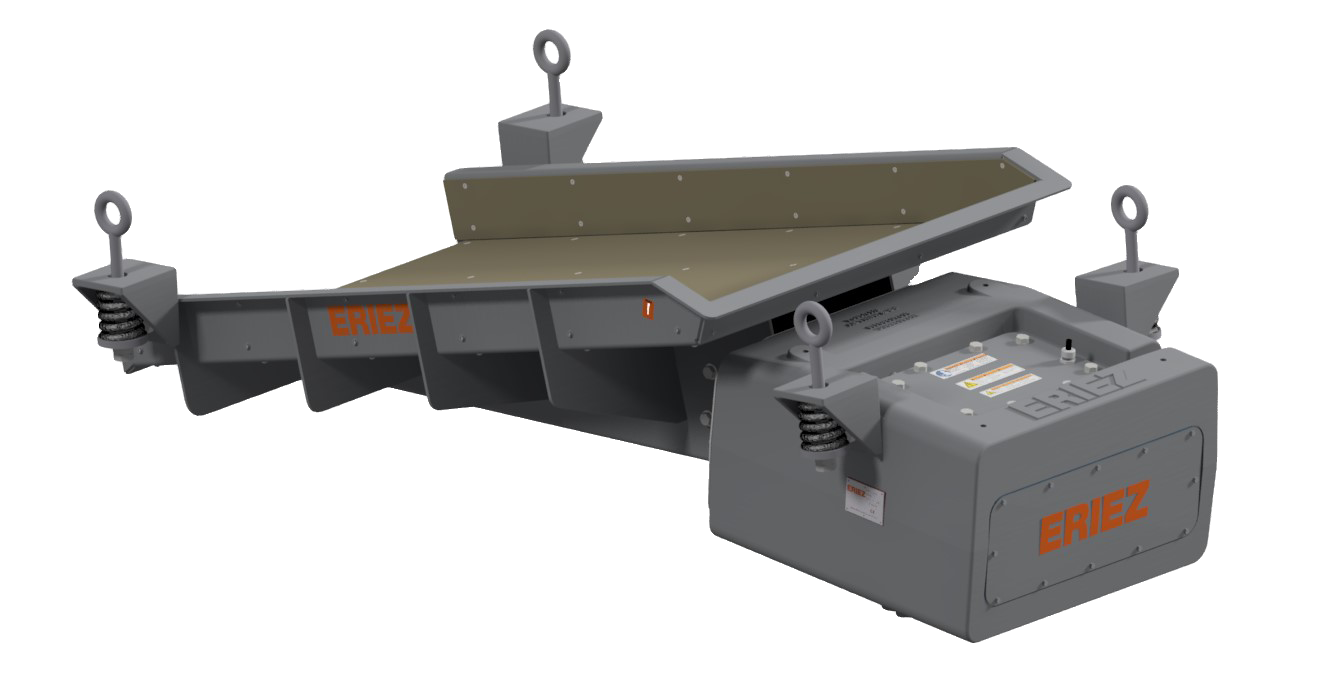

120B-HC High Capacity Vibratory Feeder
Feed up to 998 metric tonnes (1100 tons) per hour at 60 Hz* and 982 metric tonnes (891 tons) per hour at 50 Hz*
For the maximum volume, the 120B-HC represents the highest-capacity feeder in its class. In the most demanding material handling environments, it delivers unmatched durability and throughput. Built for full-scale mining, minerals processing, and heavy industries, it's ideal for large-scale operations.
When performance cannot be compromised, the 120B-HC delivers unmatched durability and throughput.
