Customer-Proven Eriez® Full Coverage Lift Magnets Quadruple Burn Table Output While Creating a Safer Workplace

Customer-Proven Eriez® Full Coverage Lift Magnets Quadruple Burn Table Output While Creating a Safer Workplace

March 2022

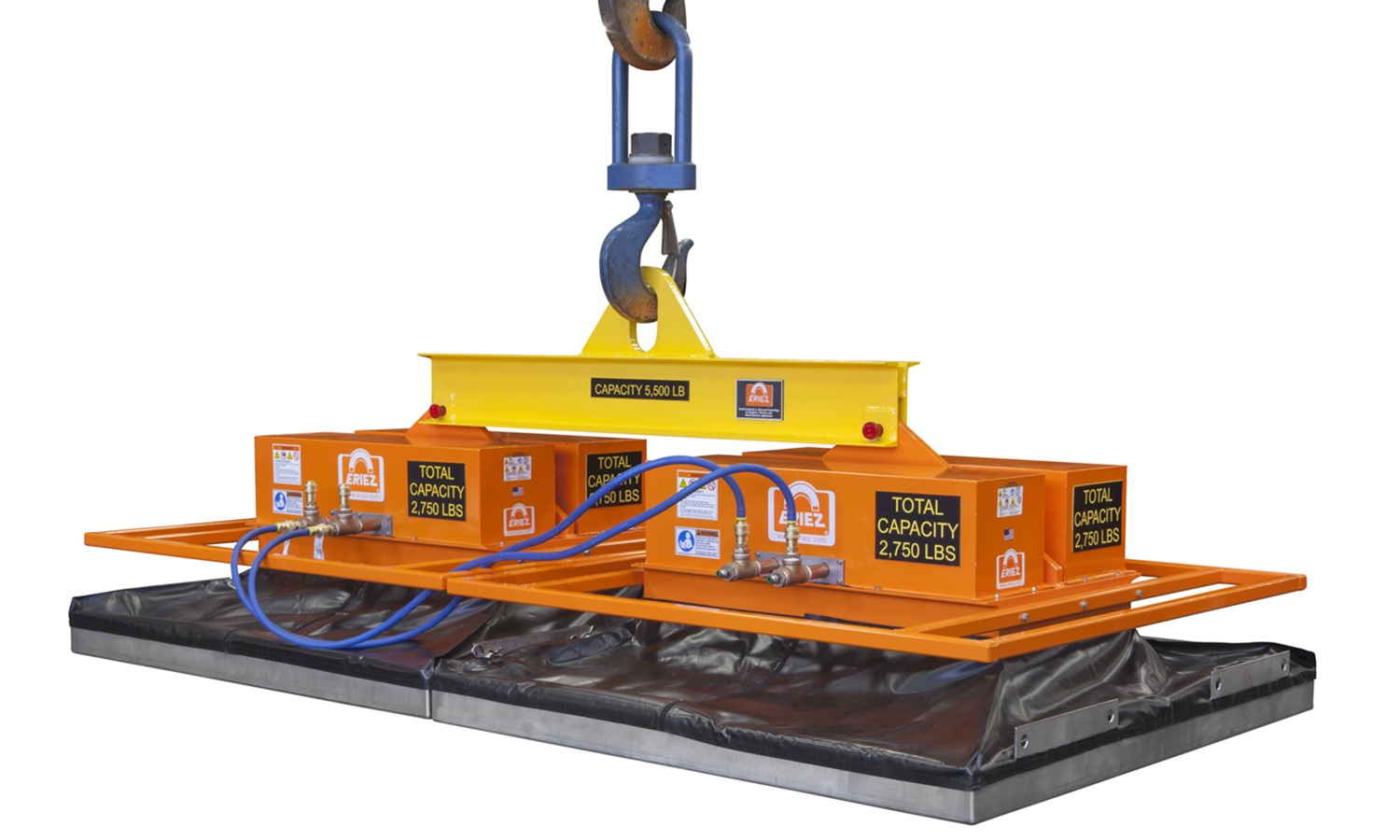

Eriez’ air-operated Burn Table Full Coverage Lift Magnet Systems utilize a large full-contact magnetic surface area to move multiple parts in a single lift. Customer results prove these advanced systems can quadruple burn table production and improve safety conditions by reducing employee exposure.

Manually unloading burn tables can be a very time-consuming process, according to Eriez® Metalworking Market Manager Andy Kloecker. “Our Full Coverage Lift Magnets not only pick up many parts in a single lift, but also handle skeletons with ease because the magnetic circuit design eliminates gaps on the surface.”

A prominent Eriez customer and one of North America’s premiere suppliers of carbon steel parts-to-print recently reported on their outstanding results with these innovative magnets. “We started seeing the benefits almost immediately,” facility management said of the Full Coverage System. “The operators were able to clear the parts off the table much more efficiently and safely and load full sheets onto the table with the same performance. We’ve more than quadrupled our output on the table as a result.”

Kloecker says the full coverage capabilities of the magnet eliminate manual handling and the need for operators to walk or climb on the table, an extremely dangerous practice that puts workers’ safety at risk.

The Eriez Burn Table Full Coverage Lift Magnet System has the ability to pick up single sheets of thinner material from a stack for table loading, down to 3/16" sheet. This eliminates the need for spacers between sheets and time- consuming separation processes while loading the table.

Operation of the system requires only an overhead hoist and an air supply. The simple solenoid valve on the unit can be wired into existing crane controls, whether it is a wired pendant or hands-free radio control. The air source can be from shop air, or a small, dedicated compressor mounted above on the crane bridge.

The Burn Table Full Coverage Lift Magnet’s permanent magnet circuit eliminates costly lift magnet controllers and safety concerns due to power failures. “The system is also very energy efficient, needing only a small amount of air to cycle fully,” explains Kloecker.

Learn more about Eriez Burn Table Full Coverage Lift Magnets.
