X-ray Inspection
PrecisionGuard X-ray Inspection Systems
Protect your brand and product with Eriez’ line of X-ray Inspection Systems. Detect contaminants, foreign objects, and irregularities in your product line and avoid costly and potentially dangerous product recalls. Designed to meet and exceed strict industry standards, our line of X-ray Inspection Systems delivers the checks you need. Make sure that your product stands up to the highest scrutiny using non-destructive X-ray technology.
See What You Can’t
High-definition image processing provides for superior detection. Ensure top product purity whether you’re inspecting for metallic, glass, stone, bone, or dense plastic contaminants. X-ray detectors can inspect incoming material feeds or already-packaged items, benefiting the entire downstream process. Whether by helping verify fill levels, uniformity, and positioning or detecting contaminants in raw, bulk, or pipeline streams, X-ray technology identifies issues fast.
Models for Your Exact Needs
XRP — Inspection for Packaged Products
XRB — Bulk Flow for Raw Materials
XRS — Sideview for Cans, Jars & Bottles
XRL — For Liquid Lines
Built for Demanding Environments
The PrecisionGuard's modular, stainless steel construction is for a durably built for compact footprint built for washdown conditions. Its highly sensitive Linear Diode Array detectors provide for high-contrast imaging while its protective shields and Inspection Block prevents leakage certified well below strict guidelines. Each unit is engineered for tool-free disassembly, allowing for easy sanitation and maintenance.
Powerful, Intuitive Software
Using AI-enhanced image analysis, Eriez' X-ray Inspection System allow for superior detection accuracy. Navigate and view product on the user-friendly 15″ touchscreen interface for scans and analysis. With multiple inspection tools including mass, shape, density, and missing component detection, you can visualise in real-time and calibrate automatically, with audit-ready data logging and reporting.
Designed for Your Industry
- Food
- Bottling
- Canning
- Packaging
- Recycling
- Pharmaceutical
- Plastics
- Rubber
- Textiles
X-ray Inspection Systems

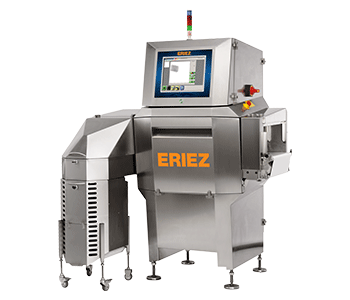

XRP — Inspection for Packaged Products
For Cases, Cartons, Bags, Pouches & More
Streamline product inspection requirements using advanced X-ray technology tailored for items such as cases, cartons, bags, pouches, trays, or small cups. This compact, flexible, and hygienic design is ideal for food and pharmaceutical applications. Everyday operation is easy with integrated rejection solutions. Eriez product inspection experts can help to seamlessly integrate X-ray inspection for added safety and reduced downtime.
|
Model |
Insp. Width (mm) |
Insp. Height (mm) |
Belt Width |
|
XRP-280 |
280 |
120 |
275 |
|
XRP-360 |
360 |
180 |
400 |
|
XRP-570 |
570 |
270 |
600 |
|
XRP-760 |
760 |
250 |
800 |
|
XRP-570p |
570 |
310 |
600 |
|
XRP-760p |
760 |
350 |
800 |

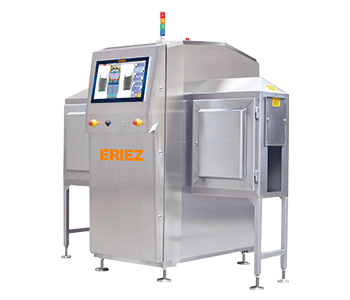

XRS — Sideview for Cans, Jars & Bottles
Upright Scanning
The XRS Sideview X-ray Inspection System is engineered for upright containers like cans, jars, and bottles. Quickly scan dense regions typically hidden from top-down systems. Let the geometry work for you with accurate angles aimed at your specific product line.
Features:
- Detects contaminants in cap, neck, and base
- High-contrast diode array for enhanced base and sidewall detection
- No need to rotate containers during inspection
- Adaptable for both glass and opaque packaging
- Full QA toolkit for missing product, fill verifications, and seal inspections
| Model | X-ray Sources |
| XRS-100lp | 1 |
| XRS-100 | 1 |
| XRS-200 | 2 |
| XRS-300 | 3 |

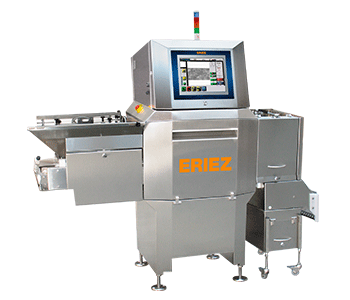

XRB — Bulk Flow for Raw Materials
Process Loose & Granular Products
The XRB Bulk Flow X-ray Inspection Systems are designed to deliver contaminant detection for raw, unpackaged bulk materials. Whether it’s nuts, seeds, fruit, grains, or frozen berries, these systems catch foreign objects such as glass, metal, stone, or unwanted clumps early on. Protect downstream machinery and maintain product purity.
Features:
- Easily inspects uneven flow and overlapping products
- Repeatable contaminant detection
- Maintain high throughput with excellent accuracy
- Designed for loose and granular products
|
Model |
Inspection Width (mm) |
|
XRB-360 |
360 |
|
XRB-570 |
570 |

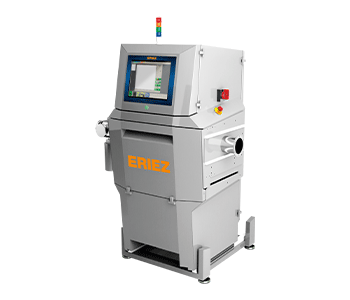

XRL — For Liquid Lines
For Pumped & Semi-solid Streams
The XRL Inspection System is specifically engineered for liquid, pumped, or semi-solid product streams. Perfect for applications where traditional conveyor or gravity systems aren’t feasible, it lets you maintain flow continuously with minimal downtime.
Specifications:
- Pipeline Size: 100 mm (4") tri-clamp or DIN flange
- Reject valve options: full-divert, three-way, or pulse flush
- Protection rating: IP66
Features:
- High-speed image acquisition for turbulent product streams
- Precise reject valve with minimal product loss
- FDA-compliant food-contact components
- Fully sanitary design — clean in place (CIP) ready
| Model | Pole Diameter |
| XRL-360 | 100 mm (4") |
