Suspended Electromagnets
Suspended Electromagnets
The Suspended Electromagnet provides tramp metal collection from conveyed materials. The electromagnet is typically mounted or suspended over a conveyor belt to remove large pieces of tramp metal that represent a hazard to downstream crushers, mills, pulverizers and grinders. Suspended electromagnets also remove sharp metal that can damage or tear expensive conveyor belts, especially at transfer points. Product purity is enhanced with the separation power of the suspended electromagnet.
Features & Benefits:
- Exclusive oil expansion tank prevents condensation and protects against hot spots to extend coil life
- Insulated Aluminium or copper coils and fiberglass spacers to prevent shorts
- Five-year warranty on coil assembly
- Adjustable oil expansion tank design for any installation angle is mounted with slotted brackets, allowing the user to rotate the tank so the moisture drain is always on the low side
- Lift lugs now include two side-by-side holes to allow for simultaneous hoisting and installation of the suspension gear
- 23 magnet sizes, 69 standard models and hundreds of special designs available for unique applications
- Special options, including:
- CSA approved designs for both manual and self cleaning units
- Upgraded coil design for elevations greater than 3,000 feet above sea level
- High fire point coolants
- Zero speed switches
- Dust covers
- Pulley guards and controls
- Permanent extensions and monitoring devices
- Force-cooled units available for high temperature applications
Manual Cleaning Models
All MC models are cleaned of accumulated tramp iron by manually transporting the magnet to a dump location and turning off the power. MC models are recommended for material flows with low concentrations of iron or work-hardened stainless steel.
Self Cleaning Models
SC models provide completely automatic tramp metal removal. This system features a short rubber conveyor belt built around the magnet’s face — with a rugged continuous channel frame, bearings, adjustable take-ups, and a shaft-mounted reducer coupled to a Totally Enclosed Fan-Cooled (TEFC) motor.

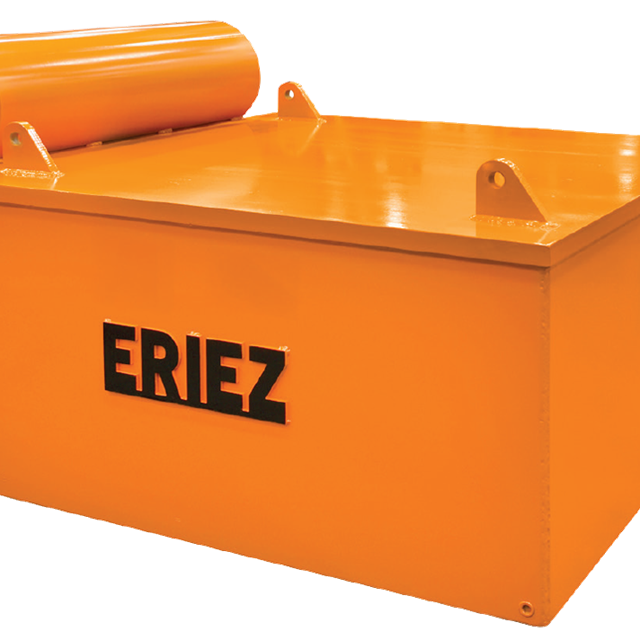

Series 7000 Suspended Electromagnets
With thousands in place around the globe, Eriez’ most popular suspended magnet model is the SE-7000. Designed to remove damaging tramp metals transported on conveyor systems. They enhance product quality and protect downstream equipment like crushers, mills, and shredders.
By removing sharp metal fragments, they also reduce the risk of tears in high-value conveyor belts. This protection provides for minimal downtime, lower maintenance costs, and an extended lifespan for processing equipment.
Magnet Design
Eriez oil-filled convection-cooled Suspended Electromagnets are engineered to deliver the magnetic strength required to extract large ferrous contaminants from heavy burden depths. From loader bucket teeth to drill bits and rods, these magnets are built to perform in demanding environments.
Each unit is precisely sized based on belt width, speed, burden depth, and material type to ensure optimal tramp iron removal. The magnetic circuit is formed by tightly wound, insulated wire coils around a solid steel core, enclosed in a rugged steel housing. Eriez streamlined coil designs favor more wire and lower power to reduce heat buildup, extend insulation life, and enhance magnetic field strength.
Features:
- Oil-filled and convection-cooled for reliable 24/7 operation — even in the harshest industrial environments — without the need for external cooling
- Exclusive External Expansion Tank designed to maintain coil integrity by regulating oil levels and preventing moisture intrusion
- Insulated aluminium coils with non-degradable spaces and insulation to ensure optimal performance and extended service life
- Manual and self-cleaning options to continuously discharge tramp metal
- Five-Year Coil Warranty for industry-leading protection and long-term peace of mind
- Custom options including turnbuckles, coolants, speed switches, hazardous-rated components, guards, belting, motors, and component monitoring

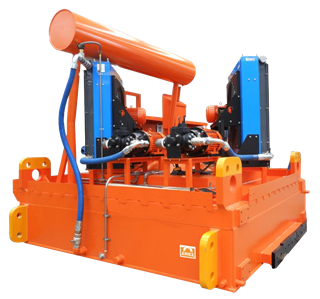

Compact Force-Cooled Suspended Electromagnets
Eriez provides significantly smaller sized compact force-cooled magnets that are able to provide the same strength as our largest magnets. The key is using a lightweight, active cooling system which can be fully integrated or located remotely.
In applications involving exposure to high ambient temperatures, Eriez optimises the performance of an oil-cooled magnet assembly by recirculating the coolant through a heat exchanger. This improves heat dissipation and increases magnet strength in a much smaller footprint.
Applications
- Coal
- Limestone
- Sand
- Gravel
- Municipal waste
- Wood products
- Recycled materials
- Copper ore
- Other ores
Features
- Higher magnetic fields in a smaller footprint
- Forced cooling allows the magnets to produce a higher field strength at lower temperatures
- Reduced suspended mass compared to traditional electromagnets
- Exclusive Oil Expansion Tank prevents condensation and keeps the coils submerged and cool
- Manganese bottom plate provides for superior durability in demanding applications
- Special features available such as elevation-derated coils, high fire point coolants, oil temperature sensors, flow switches for monitoring heat exchanger operation, conveyor speed switches, guards, controls, monitoring devices, and more
Chute Suspended Electromagnets
Eriez’ SE-2400 Chute Electromagnets are engineered to remove damaging tramp metals from material streams flowing through chutes or discharging from conveyors.
Each unit is custom engineered based on chute width, burden depth, and material characteristics to ensure optimal tramp metal removal. The magnetic circuit includes tightly wound, insulated wire coils around a solid steel core, all housed in a rugged, industrial-grade enclosure.
What sets the SE-2400 apart is its enhanced coil design, which increases magnetic field strength and coverage. Its unique stepped face improves separation efficiency for maximum tramp metal retention, ensuring cleaner product flow and better protection for your equipment.
Applications
- Meat
- Protein
- Rendering Industries
Features
- Oil-filled and convection-cooled for reliable 24/7 operation — even in the harshest industrial environments — without the need for external cooling
- Insulated aluminium coils with non-degradable spacers and insulation to ensure optimal performance and extended service life
- Stepped magnet face allows for unrestricted product flow and prevents accumulated tramp metal from wash off
- Support legs position the unit at a 55-degree angle
- Five-Year Coil Warranty for industry-leading protection and long-term peace of mind
- Custom options including legs, chute angle, coolants, junction box, and controls
Dry Compact Suspended Electromagnets
Dry Compact Suspended Electromagnets are designed to deliver the magnetic strength necessary without the need for oil-filled magnet housings. These air-cooled units generate minimal internal heat for maximum heat transfer via conduction, eliminating the need for cooling fluids or mechanical systems.
The Dry Compact series features an elongated rectangular core that distributes the magnetic field more uniformly across flat conveyor belts. This enhanced coil and core design boosts field strength and coverage for maximum separation efficiency and equipment protection in both stationary and mobile systems — ideal for high-demand material handling.
Applications
- Construction and demolition debris
- Primary and recycled aggregates
- Mining and quarrying operations
- Municipal and industrial recycling
- Wood, paper, and biomass processing
- Cement and construction material handling
- Mobile crushers, screeners, and shredder integrations
Features
- Completely dry construction with no combustible or environmentally contaminating coolants used inside the magnet
- Rectangular core promotes even magnetic field distribution across conveyor for improved separation efficiency
- VEOX-adonised aluminium strip coil features inherent layer-to-layer insulation provided by its adonised coating, enhancing both thermal dissipation and mechanical stability
- Low profile configuration ideal for upgrading portable systems
- Modular component based design simplifies spare parts compatibility and maintenance
- Custom options including turnbuckles, speed switches, hazardous-rated components, belting, motors, and component monitoring
Dry Hazardous Location Suspended Electromagnets
Eriez Dry Hazardous Location Suspended Electromagnets are designed to deliver the magnetic strength necessary without the need for oil-filled magnet housings. From loader bucket teeth to drill bits and rods, these magnets are built to perform reliably in hazardous-rated environments.
Each unit is sized to application parameters to ensure optimal tramp metal removal. The magnetic circuit consists of tightly wound, insulated wire coils around a solid steel core, enclosed in a rugged, seam-welded steel housing. These units operate with significantly reduced power consumption to oil-cooled models, due to the increased size of the coil in comparison to similarly sized oil-filled magnets, offering energy efficiency and operational cost savings.
Applications
- Mining and quarrying
- Chemical and petrochemical facilities
- Food processing
- Wood and paper products
- Recycling and waste management
- Energy and utilities
Features
- Completely dry construction with no combustible or environmentally contaminating coolants used inside the magnet
- Hazardous location components junction box
- Static-conducting belt to eliminate sparking from static electricity
- Insulated aluminium coils with non-degradable spacers and insulation to ensure optimal performance and extended service life
- Manual or self-cleaning option to continuously discharge tramp metal
- Five-Year coil warranty for industry-leading protection and long-term peace of mind
