X8 Metal Detectors
The New Standard in Accuracy & Efficiency
Reliable and easy-to-use, PrecisionGuard X8 Metal Detectors from Eriez detect small ferrous, nonferrous, and stainless steel metal contaminants. In its base package, the X8 offers an easy-to-use touchscreen interface, quick setup and reporting, multiple communication ports (USB and Ethernet), and the standard high-pressure washdown design.
Engineered for Excellence
In addition to its rugged construction, the X8 Metal Detector offers easy set up, operation and reporting from a large, well-designed graphical interface.
Sophisticated Software
While the PrecisionGuard X8 Metal Detector ships with factory pre-set settings for your products (based on actual testing and provided application data), adding new products or changing parameters is simple.
Features
- Four password protected levels of access
- Auto set-up and product learning
- Easily change product boundaries/rejection
- One touch log reporting
- Eight fields of data recorded on a large flash drive
- Multiple communication ports – USB and Ethernet
- Log/tracks/rejects, on/offs, faults, warnings, product and setting changes, operator changes, and much more

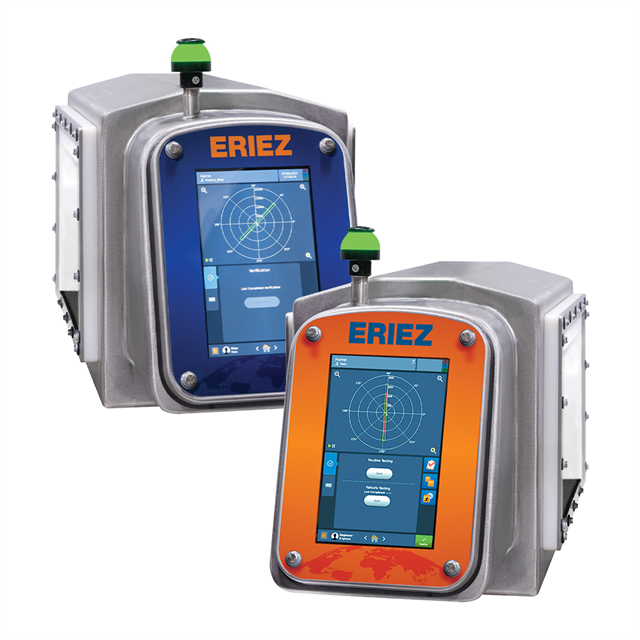

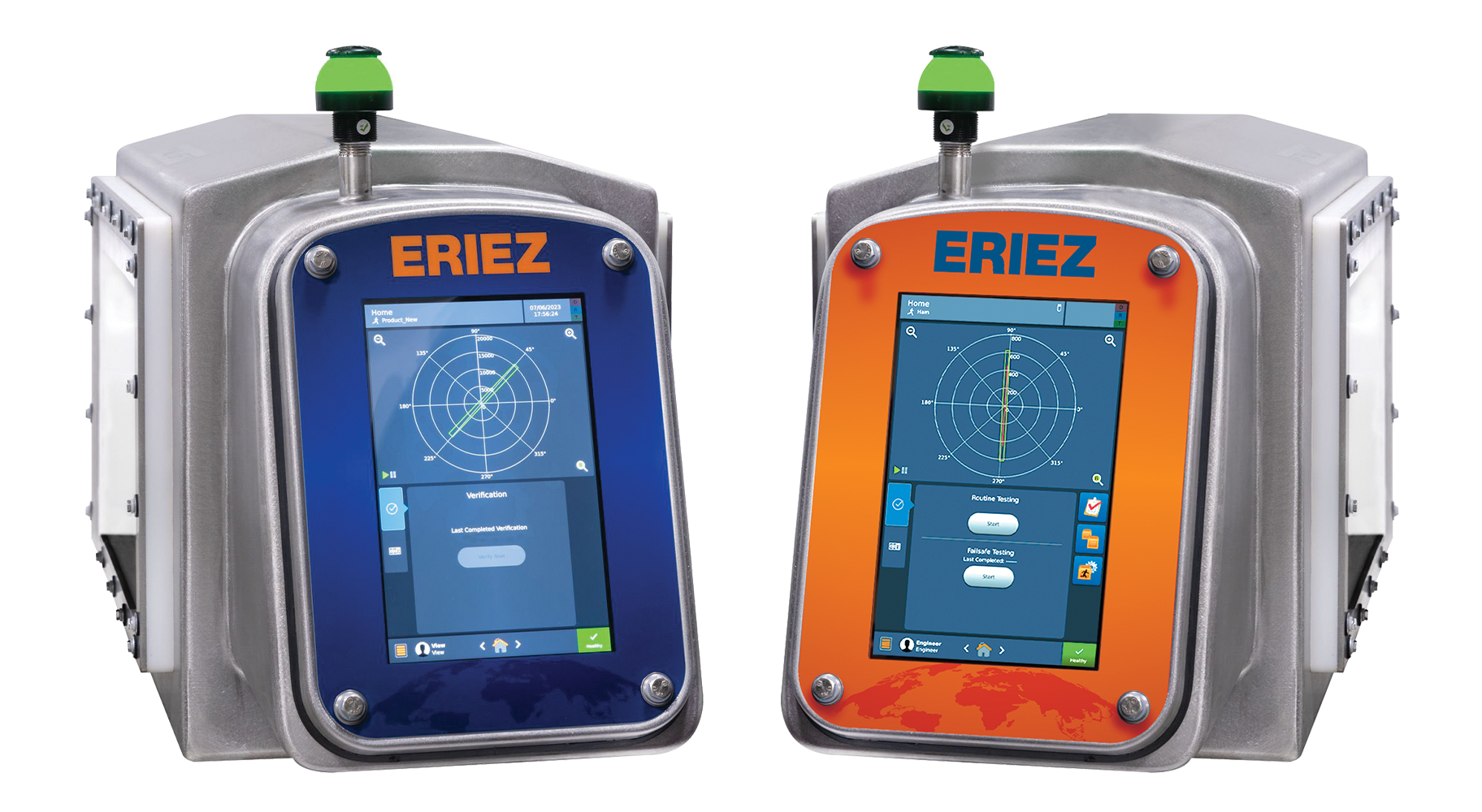

Tunnel Metal Detector
With user-friendly features and versatile capabilities, the X8 Metal Detector is designed to suit any in-line processing application where space is limited and accuracy is essential. This head unit features a large touchscreen interface and dynamic features catered to the user.

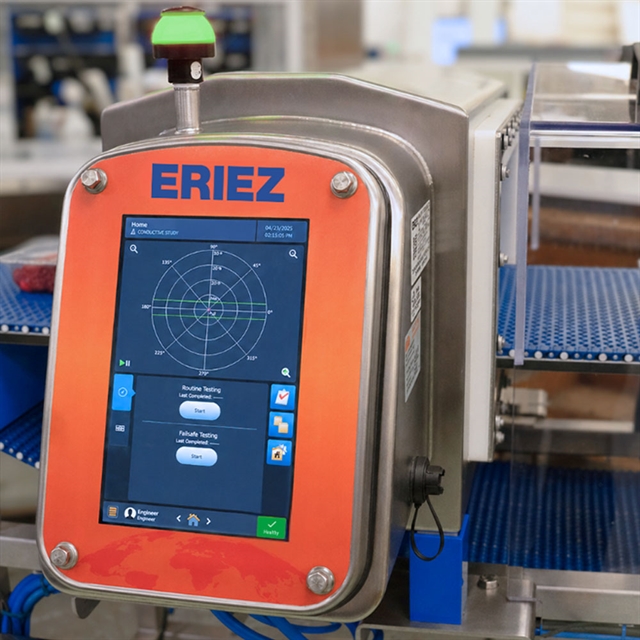

For more demanding applications, the X8-SF Metal Detector uses simultaneous frequency technology to improve detection in conductive material such as meat, poultry, and dairy products. Items with high salt, moisture, or added mineral content are able to be scanned thoroughly, in addition to iron-fortified or nutritionally enhanced products. Reduce false rejections due to “product effect” variations. Deliver repeatable detection while enhancing assurance at the metal detector critical control point (CCP).

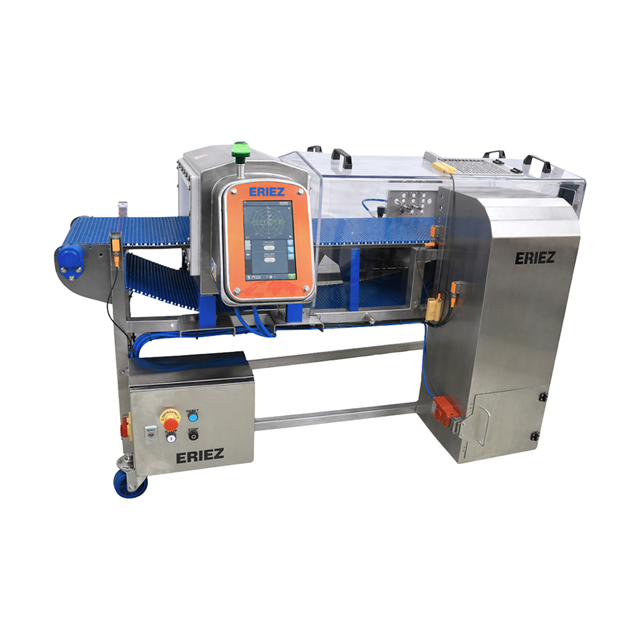

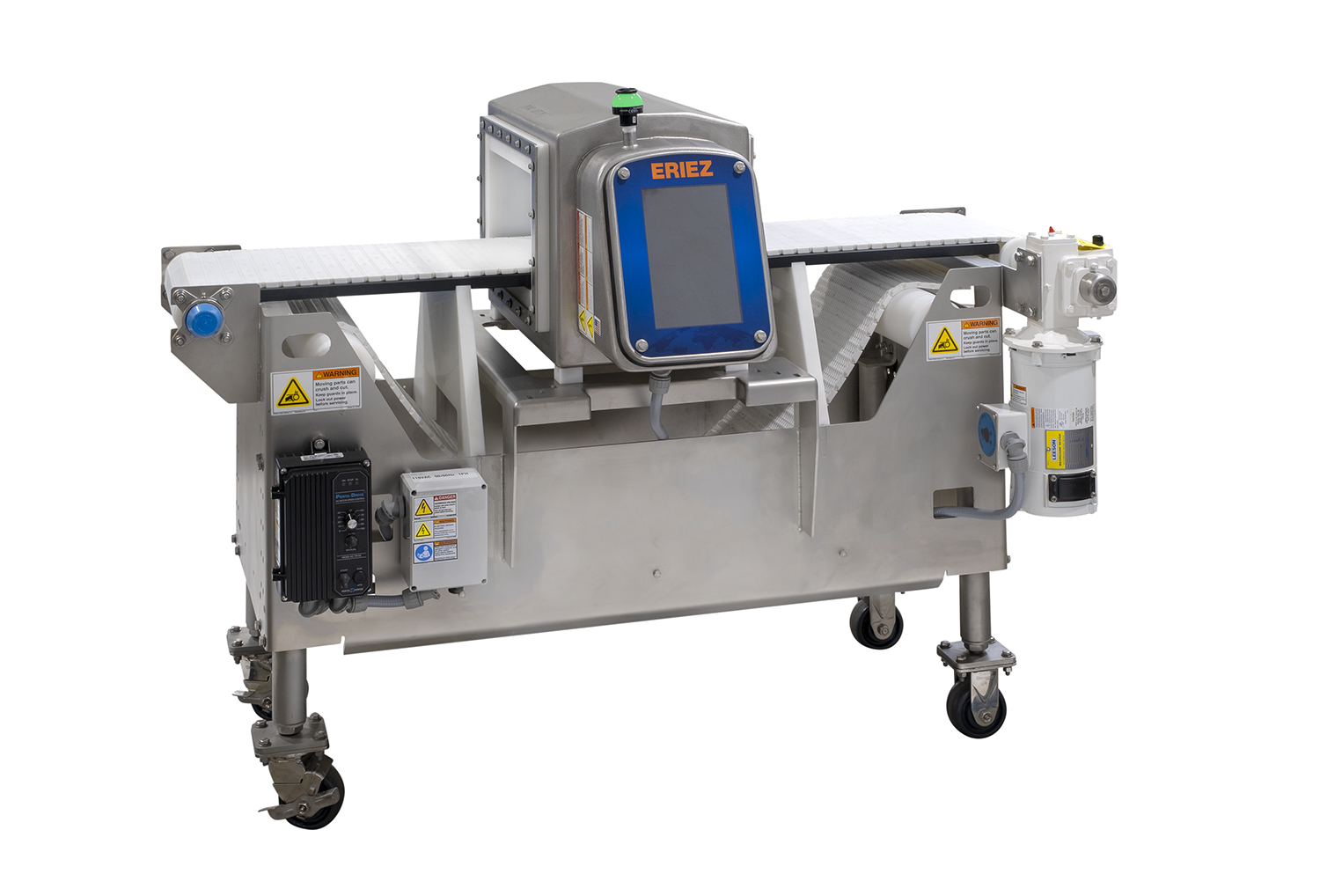

Tunnel Metal Detector with Conveyor
Pair our X8 or X8-SF technology with a durable conveyor for continuous processing to quickly integrate with existing processing flows and inspection checkpoints. Our Tunnel Detectors with Conveyors are available in a wide range of sizes and equipment options such and rejection devices, sensors, and guards.
- Continuously welded 304 stainless steel construction with 316 construction available
- Single point of power in 110/220 VAC
- Food-grade belts
Vertical, Form, Fill & Seal (VFFS)
The Eriez VFFS metal detector units are designed to mount into space-restricted areas below Vertical Form, Fill & Seal machines. With its innovative design, the VFFS Metal Detector connects to a customer's existing stainless steel hopper and forming tube with simple Jacobs connectors.
This compact unit requires no metal-free area above or below the sensing head. Its control circuitry allows for instantaneous electronic recovery from phase adjustments, as well as field switchable narrow zone/wide zone detection capabilities. All VFFS Metal Detectors offer the same full color, intuitive icon-driven controls as Eriez' other Eriez Metal Detector systems. Available in 76 mm (3"), 102 mm (4"), 152 mm (6"), 203 mm (8"), and 254 mm (10") aperture sizes to meet practically any application need.
Liquid Line Metal Detector
Eriez’ X8 Liquid Line Metal Detector systems are designed for liquids, pastes, slurries or other viscous products where high-sensitivity metal detection is required. The system can be mounted vertically or horizontally. Available in pipe sizes 38–10 mm (1.5–4") diameter. When metal is detected in the product flow, a reject signal is channeled to one of the available output relays. The output relay can be used to activate a ball valve, control a visual or audio alarm, or send a signal to a PLC.
Webline Metal Detector
Eriez’ Webline Metal Detectors are engineered for use on web or sheet applications. This unit is particularly effective for detecting metallic contaminants in wide, thin products, such as plastics, rubber, wood, woven materials and particle board. The narrow profile and micro metal-free area of the unit permits it to be installed in areas with limited space and with little isolation of any surrounding equipment.
- Stainless steel construction
- Narrow profile design
- Remote electronics
Vertical Low Profile Systems
The X8 Vertical Drop Metal Detectors are engineered for use in gravity free-fall applications. They are constructed of 316 stainless steel and include an Eriez detector with remotely housed electronics, support plate and diverter valve.
- Stainless steel construction
- Low-profile design
Eriez X8-C Metal Detector Upgrade Kit
Already own an Eriez Xtreme® Metal Detector? Step up your system with the new X8-C Upgrade Kit. It’s a direct “drop-in” replacement that uses your existing sensing head, conveyor setup, and integration — with no mechanical changes required.
- Update Xtreme electronics with minimal downtime
- Enhanced sensitivity, connectivity, and features of the new X8
- Same physical footprint and shell for easy installation
- Works with already-integrated conveyors and flow systems
- Cost-effective option for Xtreme Metal Detector owners
Eriez X8 Conveyor Metal Detector 35-second Breakdown
