Sheet Fanners



Eriez Sheet Fanners

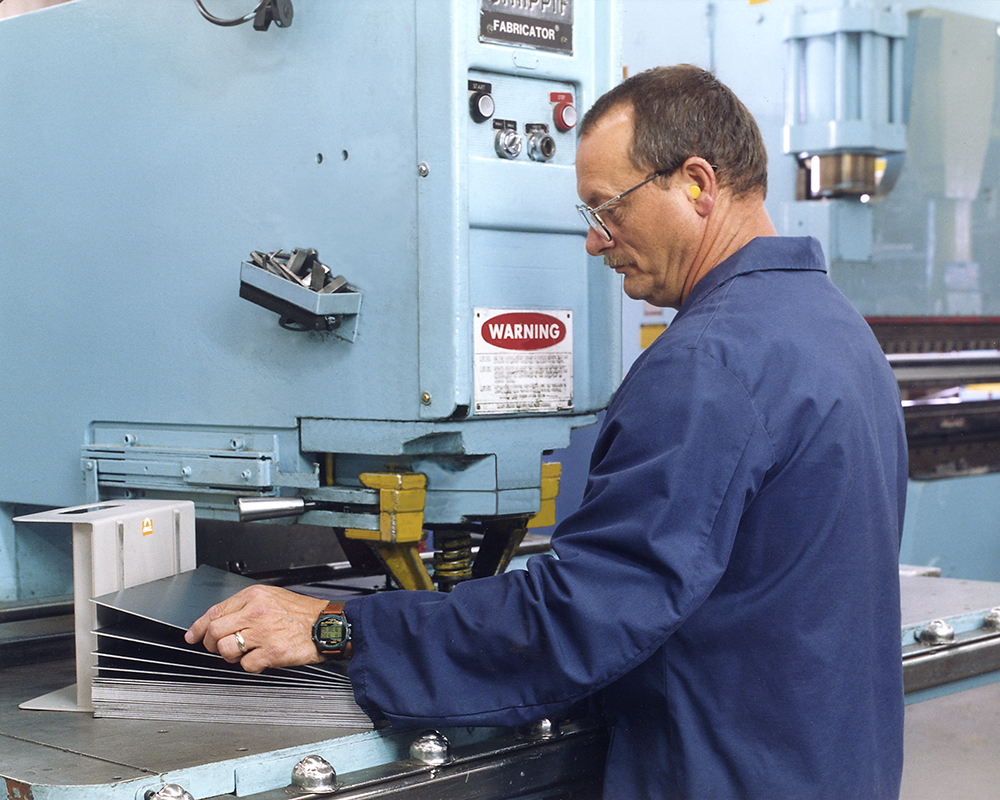

Eriez Sheet Fanners powerful magnetic circuit makes semi–sticky, oily, bent and heavy gauge sheet steel fan with ease and provide new efficiency to slow, costly, difficult sheet feeding to presses, brakes, shears, etc. No more prying, no more “doubles”, no more marring of polished and painted sheets. Three strengths are available in four functional heights. Eriez’ range of Sheet Fanner strengths and heights provides complete coverage for applications up to 1/8" (3 mm) thick steel sheets stacked up to 14" (355 mm) high.

Features & Benefits:

  • Magnetic circuit fans heavier gauges of steel with new efficiency.
  • Completely enclosed magnetic circuit is rugged, tamperproof and will withstand severe usage.
  • All units built with stainless steel “U” shaped frame with stainless anti–friction strips and back cover.
  • Design provides hand cutouts for ease in carrying from one point to another...sturdy base for fast mounting to any flat surface.

Document Download: Sheet Fanners Brochure
