Wet High Intensity Magnetic Separators (WHIMS)

The Eriez Vertical WHIMS is engineered to concentrate weakly magnetic minerals such as hematite, pyrrhotite, limonite, siderite, chromite, ilmenite, manganese, and rare earth elements. It’s also highly effective for purifying industrial minerals like kaolin, quartz, sand, feldspar, and lithium. Its unique jigging and washing mechanism minimize entrapment and matrix clogging, delivering stable and dependable performance with following features:



  • Simple Slurry Level Control – Critical for stable pulsation.
  • High-Efficiency Copper Hollow Coil – Best for magnetic power generation and direct cooling.
  • Low Voltage (< 80 VDC) – Safer for operation and maintenance.
  • Compact Coil Design – Less magnetic flux leakage, more efficient performance.
  • Dual Jigging Mechanism (Patented) – Boosts recovery and concentrate grade.
  • Optional Single Jigging – Available upon request.
  • Air-Assisted Water Flushing (Patented) – Reduces water use by ~20%, prevents clogging, lowers concentrate moisture.
  • Ring Step Motion Eliminated – Enhances WHIMS reliability.
  • Optimized Yoke Design (Patented) – Prevents early concentrate drop-off, improves recovery.
  • Advanced Matrix Structure – Ensures uniform magnetic distribution, increases capacity and separation efficiency.

Request a quote.

RFQ Form

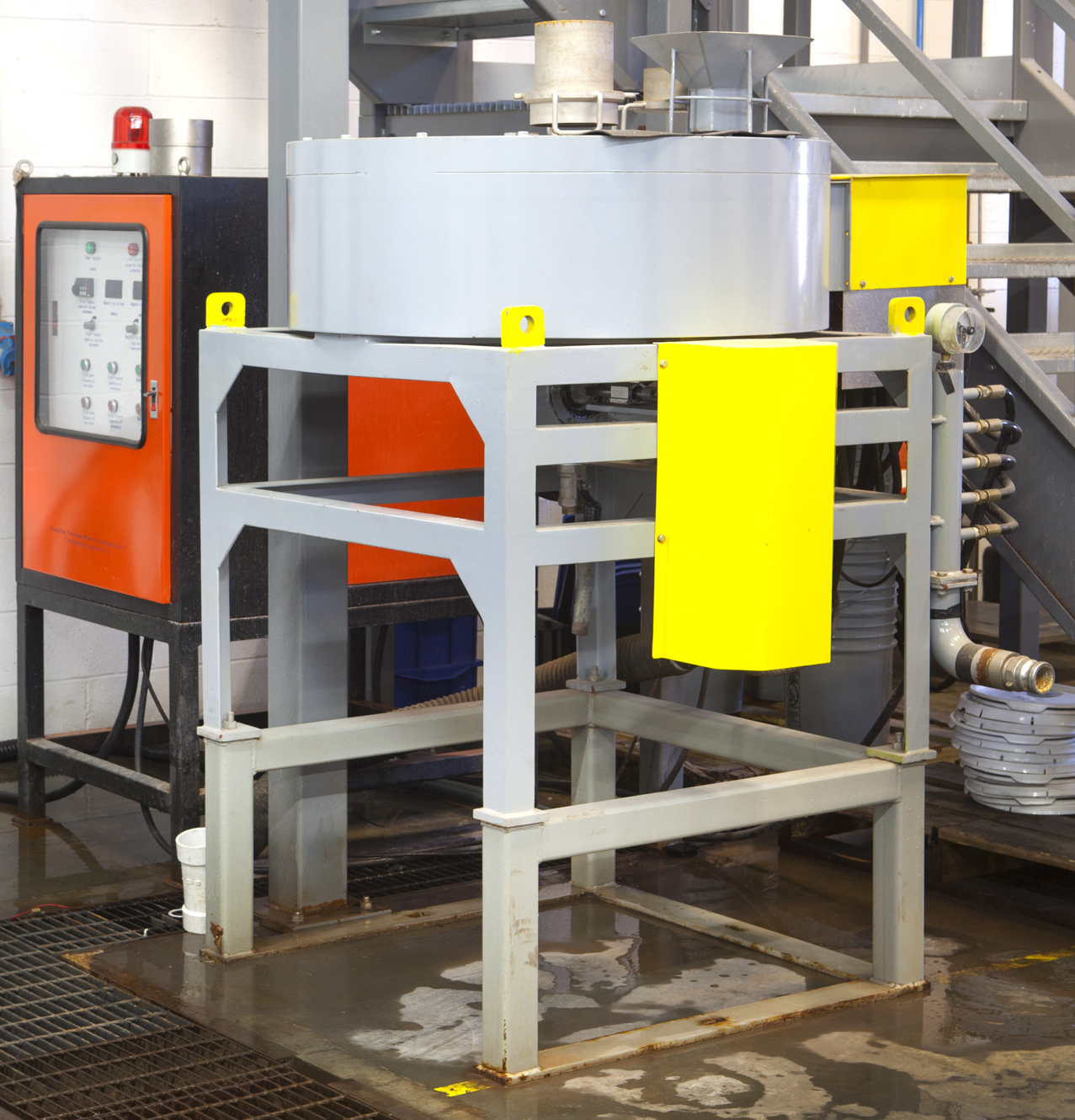

WHIMS Lab SSS-I-145

Lab Model SSS-I-145 WHIMS - Bench scale with Dual Jigg action, multiple matrices, and rectifier

Specification SSS-I-145
Way of use Unitary - Cyclic
Background field strength (T) 0-1.8 TESLA (18,000 Gauss)
Maximum output power )kW) 2300A,21V,48KW
Magnetic medium Magnetic stainless steel rod
Medium thickness (mm) 104mm
Pulse power (kW) 0.75
Stroke length 0 - 16mm, (4 stages)
Stroke frequency 0 - 300 times/minute
Cooling water pressure (Mpa) 0.1 - 0.3
Coil temperature rise (°C) < 50°C
Dimensions (L x W x H) (mm)
Magnetic separtor 985 x 925 x 1246
Control Cabient 900 x 760 x 1700
Weight if machine (Kg)
Magnetic separtor 820
Control Cabient 500

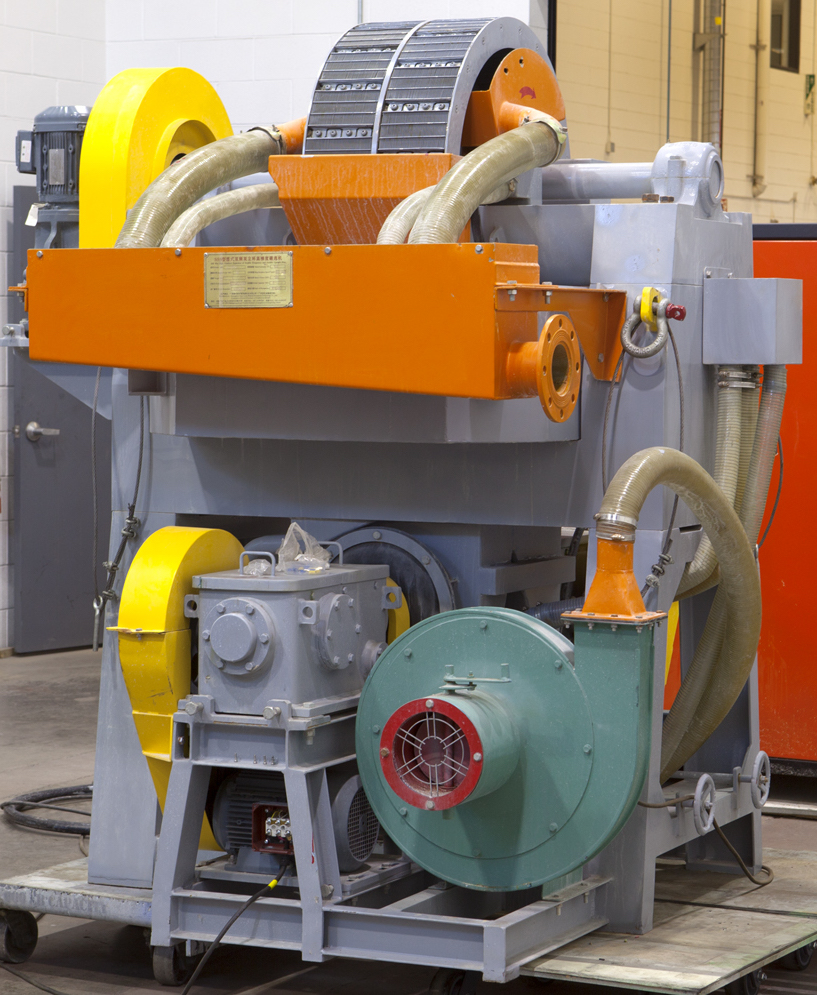

WHIMS Pilot SSS-I-0500

Model SSS-I-500 Pulsating Driving Power (KW) 0.4
Rated Intensity (T) 1.2 Blower Driving Power (KW) 0.4
Rated Magnet Power (kw) 40 Pulsating Stroke (MM) 2.2
Solids Capacity (TPH) 0.3 - 1.0 Pulsating Frequency (HZ-CYCLES.MIN) 0 - 16
% Solids W/W 10 - 40 Pulsating Stroke (MM) 0 - 140
Max Particle Size (MM) 0 - 1 Pulsation Frequency ADJUSTABLE
Rated Magnet Current (A) 1800 Water Pressure (MPA) ADJUSTABLE
Rated Voltage (V) 22 Water Consumption (M3/H) 0.2 - 03
Ring OD (MM) 500 Cooling Water (M3/H) 1 - 2
Ring Rotation Speed (RPM) 0 - 4 Equipment Weight (MT) 2
Ring Driving Power (KW) 0.4

WHIMS Lab 3K-23-11

Eriez Model 3K-23-11 control box incorporating silicon rectifier, DC switch, ammeter, and variable auto-transformer for operation from 230 volt AC input.
• Magnetic element box and two sets of interchangeable expanded metal elements - 18GA & 13GA.
• Hand-operated feed inlet and outlet valve.
• Detachable funnel.

Other voltages are available upon request.

Product Table

Item Name Part Number Description
WHIMS Lab SSS-I-145 512
WHIMS Pilot SSS-I-0500 512B
WHIMS Lab L-4-20 516

Eriez Model 3K-23-11 control box incorporating silicon rectifier, DC switch, ammeter and variable auto-transformer for operation from 230 volt AC input.

  • Magnetic element box and two sets of interchangeable expanded metal elements - 18GA & 13GA.
  • Hand operated feed inlet and outlet valve.
  • Detachable funnel.
