Eriez Sump Cleaners

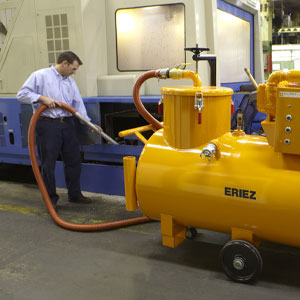

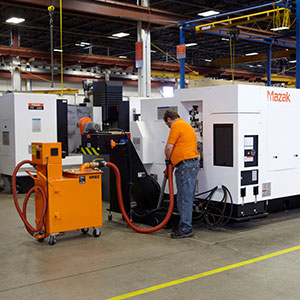

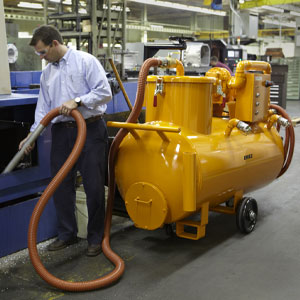

Eriez offers the widest selection of sump cleaners in the industry. Solutions range from inexpensive drum top cleaners to the industry’s widely recognized sump cleaner. Manufactured since 1974, these heavy-duty industrial wet/dry vacuum filtration units clean virtually any machine tool sump, tank, or pit quickly and thoroughly.

The sump cleaner removes the coolant, sludge and chips from the sump, filters the sludge and chips from the coolant and returns the filtered coolant to the sump, or transports the coolant to waste treatment for disposal or to an Eriez Recycling System.

The Sump Cleaner is fast! In a typical example, a cylindrical grinder sump with 120 U.S. gallons (454 liters) of coolant and 700 pounds (318 kilograms) of sludge was completely cleaned, the coolant filtered and returned to the sump in ten minutes.

Features:

  • Capacities from 50 U.S. gallons (227 liters) to 1,000 U.S. galllons (3780 liters)
  • Single or twin compartment configuration
  • Push around, tow around, or truck mounted units available
  • Air, 120V single phase, 3-phase electric, or LP gas power sources
  • Complete with hoses and cleaning tools

Drum Top Sump Cleaners

The Drum Top Cleaner is an inexpensive vacuum device capable of vacuuming chips and solids from machine tools and work areas as well as emptying coolant sumps of liquids and solids. The unit is designed to be used on an open top 55 gallon drum.

Features:

• Heavy duty drum cover plate

• Air venturi vacuum generator that mounts to cover plate

• Manual float switch to be used if unit will be used to vacuum liquids

• Fluid/solids deflector that mounts to underside of bottom plate

• 10' suction hose

• Hose to cover adapter

• 36" cleaning tool

50 Gallon Push Sump Cleaner

50 Gallon Push Sump Cleaner

120 volt 3 stage motor assembly that generates 10" HG vacuum with suction rates up to 85 GPM while being able to pick up chips, sludge, grinding swarf and other solids. A discharge pressure of 5 PSI for discharge rates up to 40 GPM.

Features:

• Electric switch to shut off motor when unit is full

• 10' long x 2" ID suction and 1-1/2" discharge hoses

• 1.6 cubic foot (.45 cubic meter) rectangular chip basket with polyfiber sleeve

• One 3' x 2" cleaning tool

• Push around configuration with two 4" x 2" swivel and two rigid casters

• Dimensions: 44" (1118 mm) long x 23.5” (597mm) wide x 51" (1295mm) high

• Weight: Approximately 350 pounds (159kg)

• Electrical: 120 volt, single phase, 60 Hz, 20 amp outlet (running amp draw is 14 amps)

LP Gas Driven Push Sump Cleaners

The LP Gas (Liquified Petroleum Gas) unit couples a 25 HP electric start with LP gas engine generating 12-15" HG vacuum power with suction rates up to 100 GPM while being able to pick up chips, sludge, grinding swarf, etc. Discharge pressure of 5-7 PSI for discharge rates up to 40 GPM.

Features:

• 3.5 cubic foot chip basket in 100 gallon units, 5.3 cubic feet for 175 gallon and larger units, both with 800 pound capacity and hinged trap door bottom

• Two reusable polyfiber sleeves for chip basket

• One 3' x 2" cleaning tool

• 20' long 2” diameter suction and

1-1/2" diameter discharge hoses

• Heavy duty tank with 14" easy on/off manhole cleanout on end of tank. Easy lift chip basket lid.

• Push-around configuration, including center mounted 12" x 3" wheels and 4" x 2" casters mounted on each end, plus forklift brackets

Electric Push Sump Cleaners

120 volt single phase unit

These sump cleaners utilize a 120-volt 3 stage motor assembly that generates 10" HG vacuum with suction rates up to 85 GPM while being able to pick up chips, sludge, grinding swarf and other solids. A discharge pressure of 5 PSI for discharge rates up to 40 GPM.

3 Phase (208, 240, 480, 575 volt) units

Utilize cast iron 3 MP positive displacement blower coupled to a 5 HP motor that generates 12-15" HG vacuum power with suction rates up to 100 GPM while being able to pick up chips sludge, grinding swarf and other solids. A discharge pressure of 5-7 PSI for discharge rates up to 40 GPM.

Features:

• Electric float switch to shutoff motor when unit is full

• Blower sound-reduction mufflers

• 3.5 cubic foot chip basket in 65 and 100 gallon units, 5.3 cubic feet for 175 gallon and larger units, both with 800 pound capacity with hinged trap door bottom

• Two reusable polyfiber sleeves for chip basket

• One 3' x 2" cleaning rod

• 20' long 2" diameter suction and 1-1/2" diameter discharge hoses

• Heavy duty tank with 14" easy on/off manhole cleanout on the end of tank, easy lift chip basket lid

• Push-around configuration which includes center mounted 12" x 3" wheels and 4" x 2" casters mounted on each end, plus forklift brackets

Air Venturi Push Sump Cleaners

An Air Venturi vacuum generator creates vacuum levels up to 13" HG for suction rates up to 110 GPM while being able to pick up chips, sludge, grinding swarf and other solids. A pre-set air pressure regulator for discharge is set for 5-7 PSI, with tank depressurization valve for discharge rates up to 40 GPM.

Features:

• 7 PSI safety air pressure pop off valve

• 3.5 cubic foot chip basket in 65 and 100 gallon units, 5.3 cubic feet for 175 gallon and larger units, both with 800 pound capacity with hinged trap door bottom

• One 3' x 2" cleaning tool

• 20' L x 2" diameter suction & 1-1/2" diameter discharge hoses

• Heavy duty tank with 14’ easy on/off manhole cleanout on end of tank, plus easy lift chip basket lid

• Push-around configuration includes center mounted 12" x 3" wheels and two 4" x 2" casters mounted on each end, plus fork lift brackets

Truck Sump Cleaners

Eriez can supply any of our Sump Cleaners on appropriate rated Industrial trucks or pallet trucks.

Features:

• An Eriez Sump Cleaner can be assembled on an LP or electric industrial truck for added mobility within a plant atmosphere

• Single compartment - up to 400 U.S. gallons (1500 liters)

• Twin compartment - up to 200/200 U.S. gallons (750/750 liters)
